- Inlet: 1 1/4" MNPT
- Outlet: 1 1/4" MNPT
- Application: NH3
- LP-Gas Flow Rate: N/A
- NH3 Flow Rate: 126 GPM

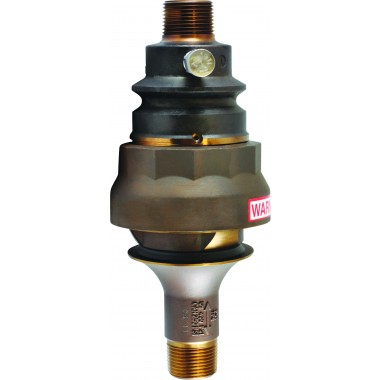

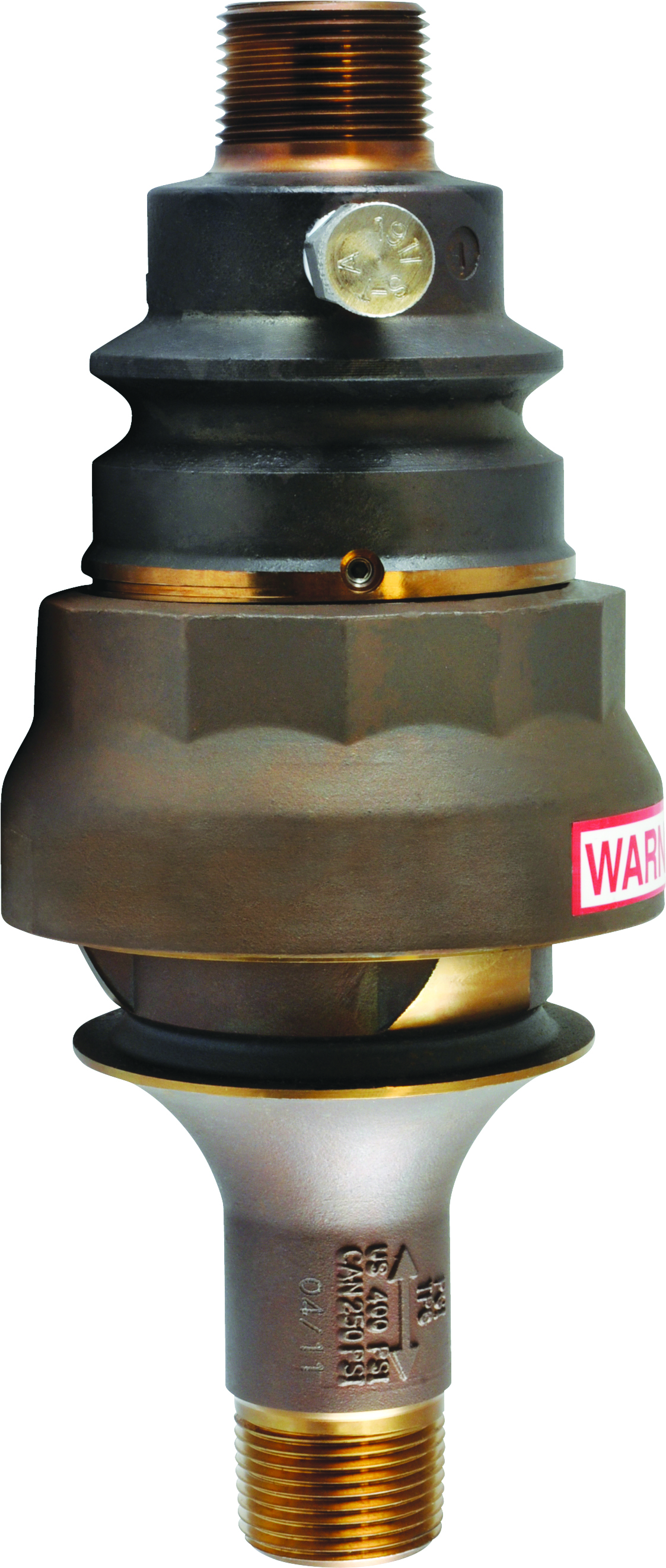

The TriPod Safety Coupler is designed to provide pull away protection between the vapor hose and the bulkhead. It’s non-destructive releasing mechanism will operate reliably with a pull away force in any generally horizontal direction. In addition, the torque needed to release the liquid and vapor TriPods is only 500 Ft.Lbs total, therefore the bulkhead does not normally require additional structural bracing. So in most cases, the TriPod can quickly be installed in existing bulkhead applications.
Includes Bar / Hardware Kit for riser mounting.
Female Half - TP7-1100: 113120
Male Half - TP7-1200: 113125
O-Ring Kits:
TP3-1304 : 119422 Fits the T126 and TP3-1000 Model with MFG date 10/93-6/94
TP7-0022 : 119432 Fits the TP7-1000 Model with MFG date of 5/01 - Present
Tripods with a MFG date of 4/98- 4/01 are not field repairable and need to be returned to factory for repair
Ball Socket O-Ring:
TP3-2020: 119410 fits model MFG from 10/93-6/94
P5-095-R1: 119423 Large fits model MFG 12/96-9/97
P5-095-R1: 119424 Small fits model MFG 12/96-9/97
Body O-Ring:
TP3-2023: 119422 fits model MFG from 10/93-6/94
P5-094-R0: 119434 fits male half model MFG from 12/96-9/97 and MFG from 5/01 - Present
P5-095-R0: 119435 fits female half model MFG from 12/96-9/97 and MFG from 5/01 - Present
