- Inlet: 1" MNPT
- Outlet: 1" MNPT
- Application: NH3
- LP-Gas Flow Rate: N/A
- NH3 Flow Rate: 55 GPM

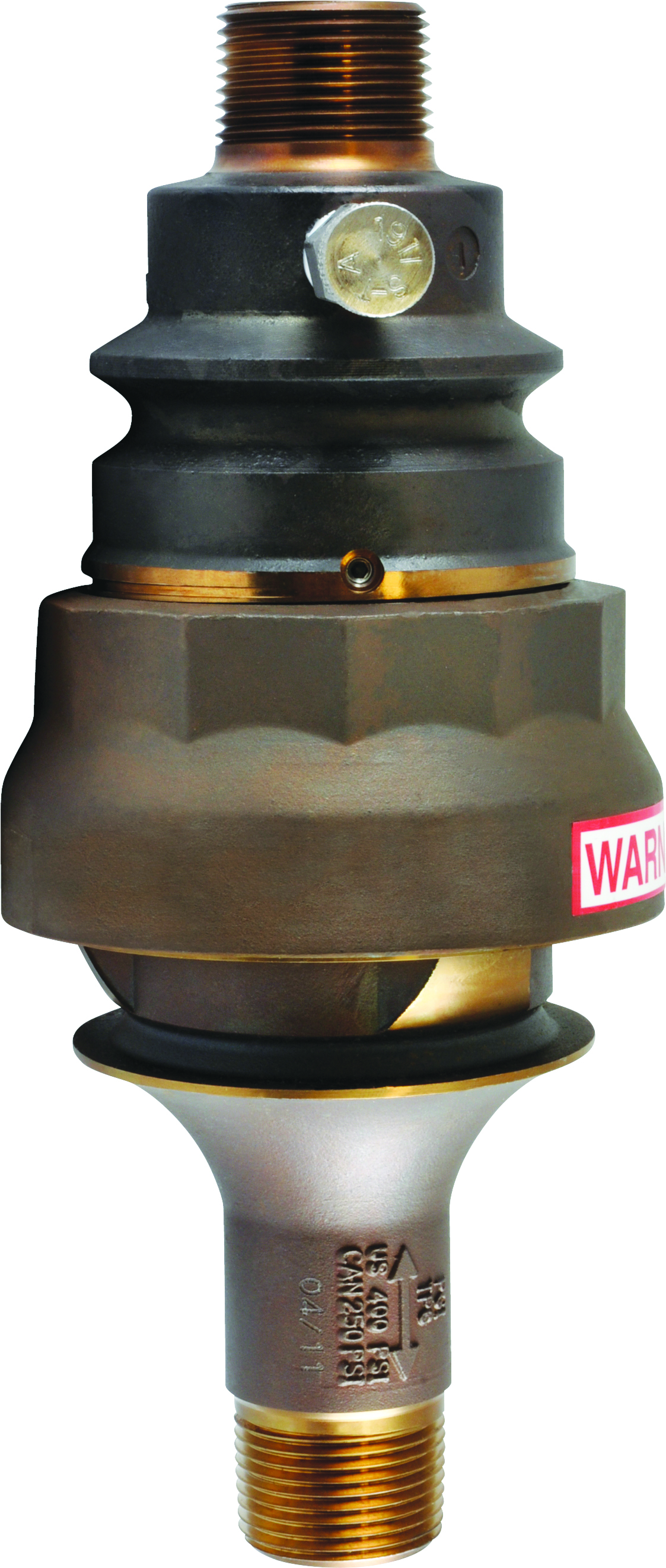

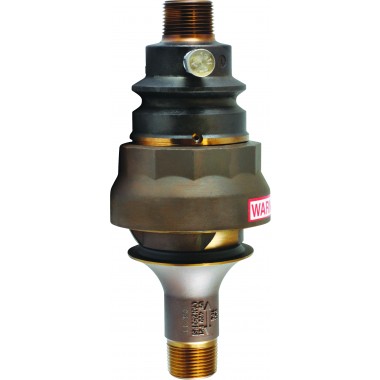

The TriPod Safety Coupler is designed to provide pull away protection between the vapor hose and the bulkhead. It’s non-destructive releasing mechanism will operate reliably with a pull away force in any generally horizontal direction. In addition, the torque needed to release the liquid and vapor TriPods is only 500 Ft.Lbs total, therefore the bulkhead does not normally require additional structural bracing. So in most cases, the TriPod can quickly be installed in existing bulkhead applications.
Includes Bar / Hardware Kit for riser mounting.
Female Half - TP5-1100: 113100
Male Half - TP5-1200: 113105
O-Ring Kits:
TP1-1304 : 119418 Fits the T55 and TP1-1000 Model with MFG date 10/93-5/97
TP5-0022 : 119430 Fits the TP5-1000 Model with MFG date of 5/01 - Present
Tripods with a MFG date of 6/97 - 4/01 are not field repairable and need to be returned to factory for repair
Ball Socket O-Ring: P5-086-RO: 119406
Body O-Ring:
P5-087-RO: 119412 fits model MFG from 10/93-5/97
P5-086-R1: 119433 fits model MFG from 5/01 - Present
