- Inlet: 1 1/4" FNPT
- Outlet: 1 3/4" F. Acme
- Valve Release: .65 cc

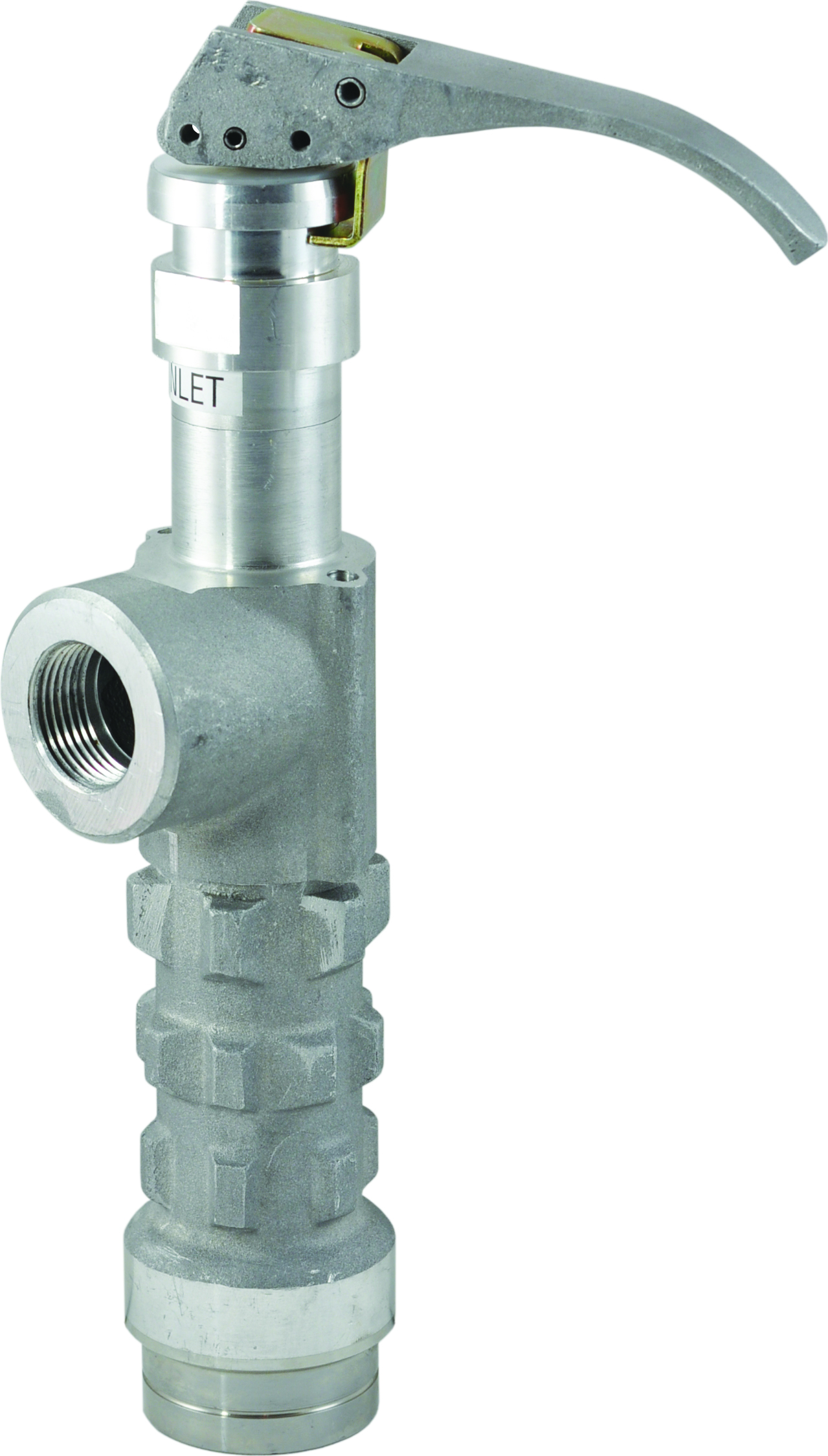

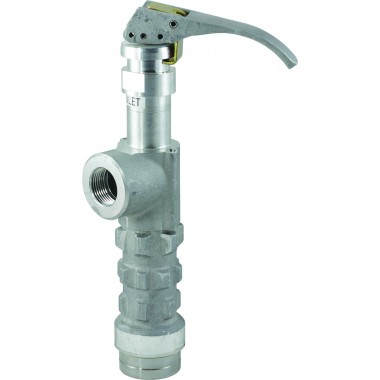

Intended for LP-Gas or NH3 hose end service, these Minimum Bleed Low Emmision valves are available with an angle body.
They minimize LP-Gas or NH3 release when disconnecting by locating the seat disc in the bottom of the filler coupling, saving you money while protecting the environment.
A special locking clip or a spring actuated locking handle minimizes the chance of accidental opening.
Ball bearings in the seat disc assembly allow the entire assembly to rotate when the disc touches the seat. This helps prevent wear and cutting of the disc, giving longer service life. The operating handle can also be moved to any position without cutting the seat.
