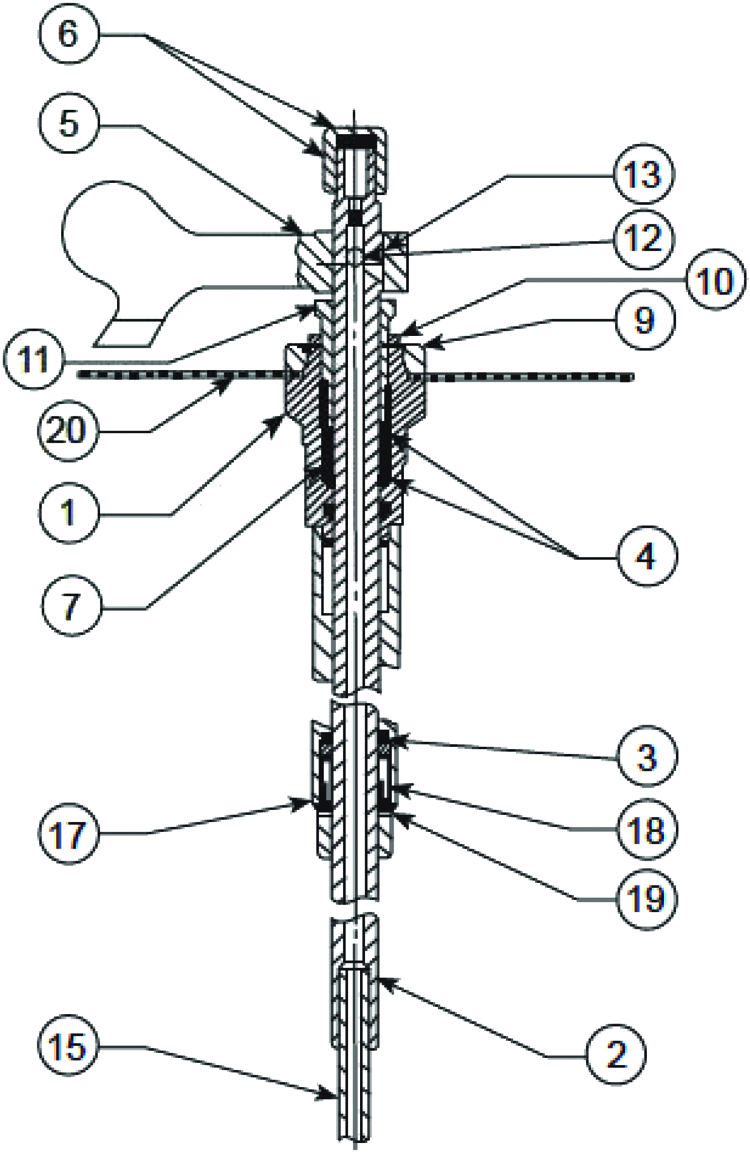

Fisher Rotary Gauge Parts
Click on "Item No." or "Part No." for part description and technical info.
Expand Table| Item No | Part No | Ref No. | Qty. | Parts Description |
|---|---|---|---|---|
| 122920 | P324 | 20 | 1 | Dial - NH3 Service |
| 122915 | P322 | 20 | 1 | Dial - 1200 Gallons & Under |
| 128184 | T1095406162 | 19 | 1 | Washer - Nylon (PA) |
| 128181 | T1095328992 | 18 | 1 | Needle Bearing - Carbon Steel |
| 128178 | T1095224102 | 17 | 1 | Insert - Zinc-Plated Steel |
| 128214 | T1096528982 | 13 | 1 | Key - Carbon Steel-Plate |
| 128209 | T1096424152 | 12 | 1 | Set Screw - Alloy Steel-Plate |
| 128208 | T1096335132 | 11 | 1 | Seal Nut - 410/416 Stainless Steel |
| 128203 | T1096224102 | 10 | 1 | Lock Nut - Zinc-Plated Steel |
| 128202 | T1096124102 | 9 | 1 | Lock Nut - Zinc-Plated Steel |
| 128190 | T1095706162 | 7 | 1 | Friction Ring - Nylon (PA) |
| 128217 | T10971000A2 | 6 | 1 | Cap-Seat Assembly - Stainless Steel |
| 128193 | T1095824102 | 6 | 1 | Cap |
| 126405 | 1C682403022 | 6 | 1 | Seat Disc |
| 128139 | T1088719232 | 5 | 1 | Indicator - Ductile Iron |
| 128187 | T1095606162 | 4 | 1 | Packing Sleeve - Nylon (PA) |
| 128175 | T1095106562 | 3 | 1 | O-Ring - Nitrile (NBR) |
| 128137 | T10885T0012 | 1 | 1 | Body Extension Tube - Zinc-Plated Steel |
| 122916 | P323 | 20 | 1 | Dial - Over 1200 Gallons |
