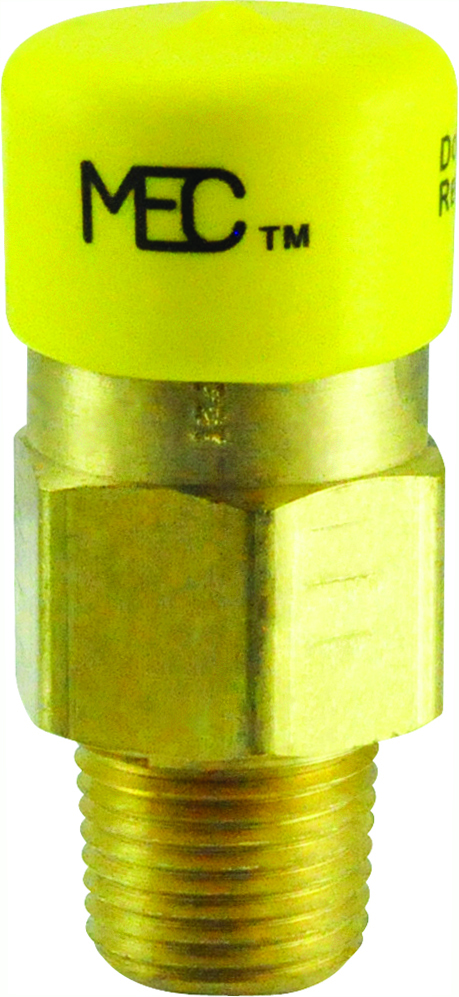

MEC External Small Relief Valves
Click on "Item No." or "Part No." for part description and technical info.
Expand Table| Item No | Part No | Tank Connection | Relief Setting | Flow Capacity - SCFM Air U.L. @ 120% Set Pressure |
|---|---|---|---|---|
| 120931 | MEV25/250 | 1/4" MNPT | 250 PSIG | ----- |
| 120933 | MEV25/312 | 1/4" MNPT | 312 PSIG | ----- |
| 120936 | MEV25/375 | 1/4" MNPT | 375 PSIG | ----- |
| 120921 | MEV50/250 | 1/2" MNPT | 250 PSIG | 200 |
| 120924 | MEV50/375 | 1/2" MNPT | 375 PSIG | ----- |
| 120937 | MEV75/250 | 3/4" MNPT | 250 PSIG | ----- |
| 120939 | MEV75/312 | 3/4" MNPT | 312 PSIG | ----- |
| 120941 | MEV75/375 | 3/4" MNPT | 375 PSIG | ----- |
