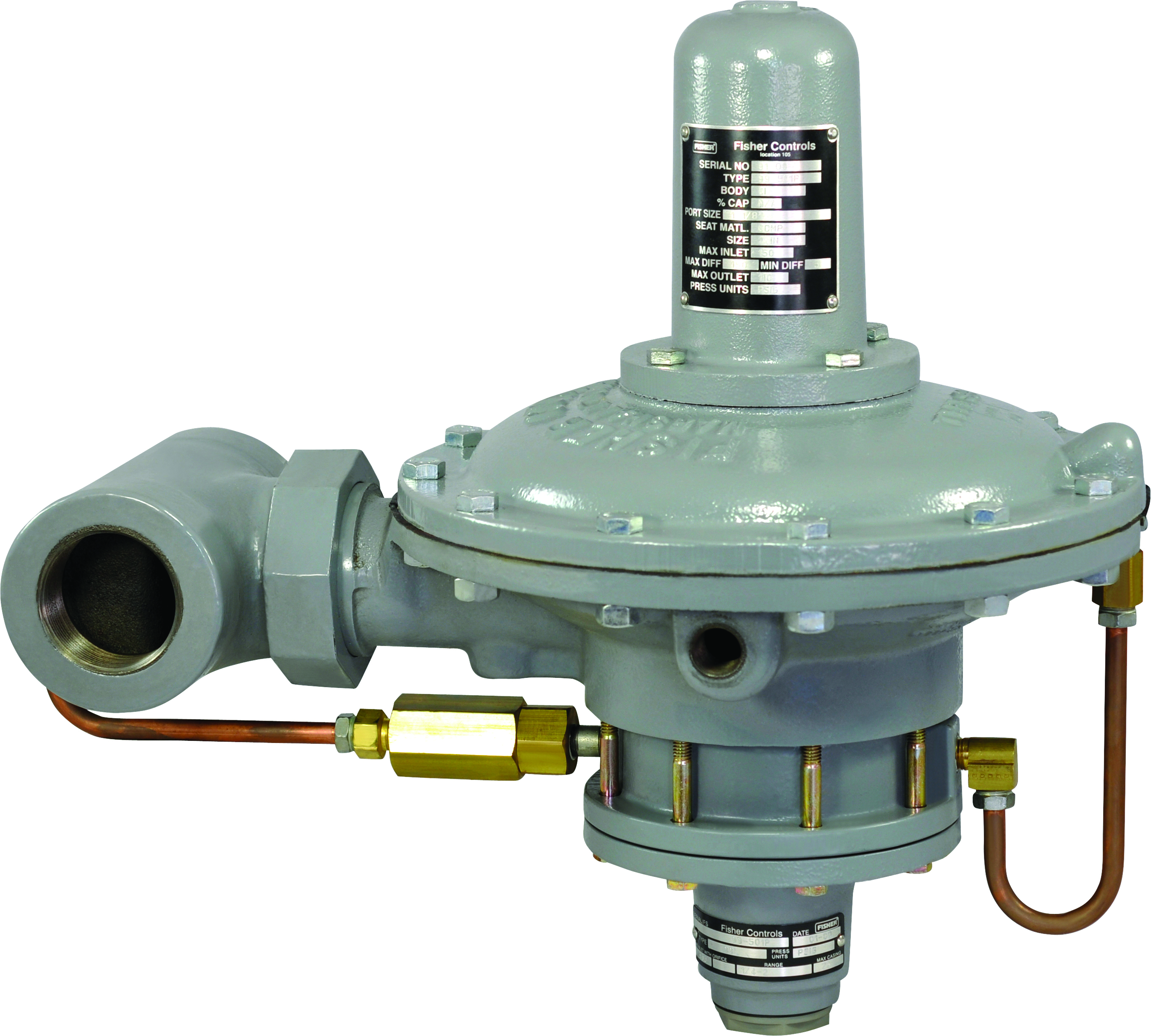

Fisher Pilot Operated High Pressure Commercial/Industrial 99 Series

Click on "Item No." or "Part No." for part description and technical info.

Expand Table

Item No	Part No	Capacity in BTU/H LPG	Orifice	Inlet & Outlet	Outlet Pressure Range	Outlet Pressure Setting	Maximum Operating Inlet Pressure
123688	99-510P	29,400,000 *	7/8"	2" FNPT	7" W.C. - 2 PSI	1 PSI	250 PSI
123689	99-901PH	74,318,000 *	1 1/8"	2" FNPT	10 - 65 PSI	30 PSI	300 PSI
123687	99-505PH	67,993,000 *	1 1/8"	2" FNPT	10 - 20 PSI	20 PSI	300 PSI
123683	99-504PH	63,250,000 *	1 1/8"	2" FNPT	5 - 15 PSI	15 PSI	300 PSI
123685	99-503PH	61,688,000 *	1 1/8"	2" FNPT	2 -10 PSI	10 PSI	300 PSI
123696	99-903P	44,275,000 *	7/8"	2" FNPT	10 - 65 PSI	30 PSI	250 PSI
123747	99F-515P	41,112,000 *	7/8"	2" CL300 FF Flange	10 - 20 PSI	20 PSI	250 PSI
123697	99-515P	41,112,000 *	7/8"	2" FNPT	10 - 20 PSI	20 PSI	250 PSI
123740	99F-512P	37,950,000 *	7/8"	2" CL300 FF Flange	5 - 15 PSI	15 PSI	250 PSI
123692	99-512P	37,950,000 *	7/8"	2" FNPT	5 - 15 PSI	15 PSI	250 PSI
123745	99F-513P	36,368,000 *	7/8"	2" CL300 FF Flange	2 -10 PSI	10 PSI	250 PSI
123694	99-513P	36,368,000 *	7/8"	2" FNPT	2 -10 PSI	10 PSI	250 PSI
123739	99F-511P	33,206,000 *	7/8"	2" CL300 FF Flange	1 - 5 PSI	5 PSI	250 PSI
123690	99-511P	33,206,000 *	7/8"	2" FNPT	1 - 5 PSI	5 PSI	250 PSI
123738	99F-510P	29,400,000 *	7/8"	2" CL300 FF Flange	7" W.C. - 2 PSI	1 PSI	250 PSI
123750	99F-901PH	74,318,000 *	1 1/8"	2" CL300 FF Flange	10 - 65 PSI	30 PSI	300 PSI
