White-Rodgers Pilot Orifices
Click on "Item No." or "Part No." for part description and technical info.
Expand Table| Item No | Part No | Drill Size | Thread Size | Connection | Replaces |
|---|---|---|---|---|---|

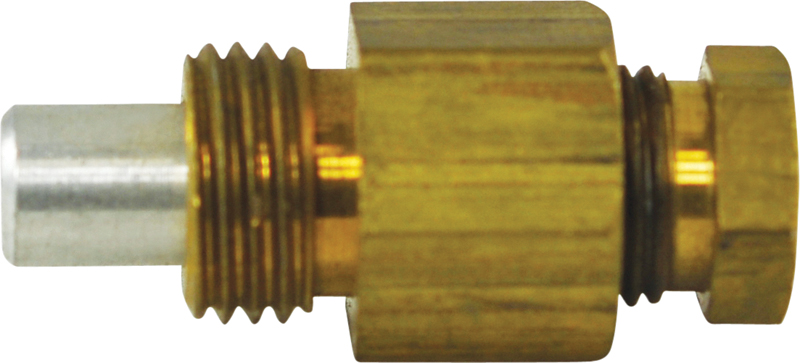

| 220673 | WR-900 | .012" | 1/2"-20 | 1/4" Compression Connection | X Style Orifice, A & B Pilot Orifice |
| 222242 | WR-902 | 0.012 | 1/2"-20 | 1/4" Compression Connection | Z Style Orifice, A & B Pilot Orifice |
| 222248 | WR-905 | .010" | 7/16"-20 | 1/4" Compression Connection | W Style Orifice |
| 222244 | WR-903 | .010" | 7/16"-20 | 1/4" Compression Connection | U Style Orifice |
| 222240 | WR-901 | .012" | 1/2"-20 | 1/8" Female Pipe | Y Style Orifice, A & B Pilot Orifice |
| 222246 | WR-904 | .010" | 7/16"-20 | 1/8" Female Pipe | V Style Orifice |
