- Tank Connection: 1" MNGT
- Outlet Connection: Female POL
- Filler Connection: 1 3/4" Male Acme
- Relief Setting: 375 psig
- Fixed Level Gauge: 11.7"
- Tank Size: 420# Cylinder

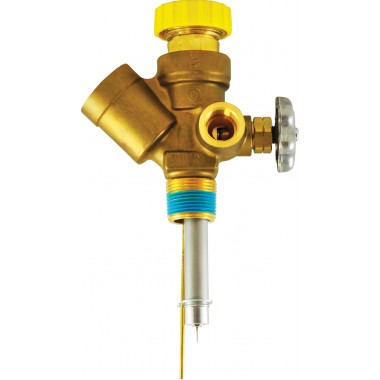

Indended for use in vapor withdrawal service for DOT or ASME containers ranging from 420 lbs. to 100 gallons LPG capacity as fuel line shutoff valves in combination with a fill and vapor relief valve. Ideal for on-site filling without interruption of service by combining all functions into a single 1” tank opening.
Features:
• One piece forged brass body construction.
• Integral Fill Valve.
• Easy to repair / replace bonnet assembly.
• Integral 375 PSI or 250 PSI relief valve.
• Heavy duty replaceable zinc hand wheel.
• 1/8” FNPT plugged test port.
• Liquid splash tube to prevent liquid in vapor opening.
• Optional MEJ401SC self-cleaning LE fixed liquid level vent screw.
• Female POL vapor outlet with shutoff.
Replacement for Sherwood PVE2035AT-11.7.
