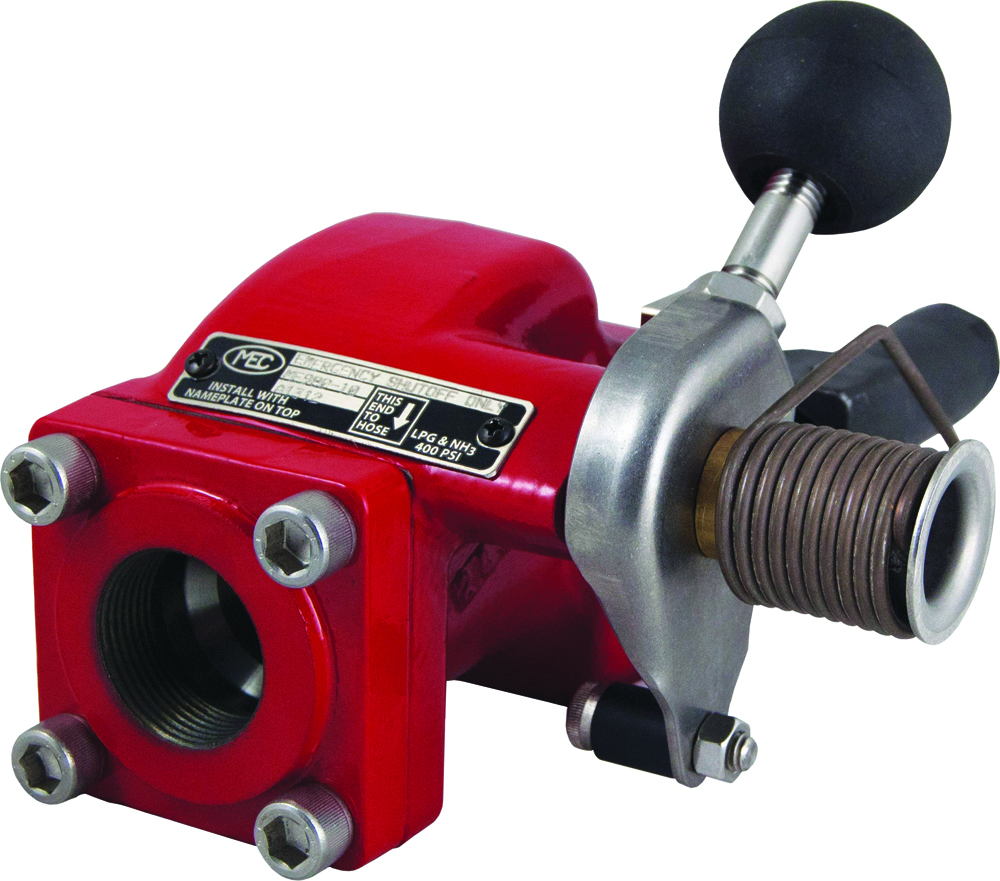

MEC - ME980 Series
Click on "Item No." or "Part No." for part description and technical info.
Expand Table| Item No | Part No | Body Size | Latch Type | Material | Flange Material | OAL |
|---|---|---|---|---|---|---|
| 154450 | ME980-6 | 3/4" FNPT | Pneumatic | ----- | ----- | 4 3/4" |
| 154605 | ME980C-24-3F | 3" - 300 Lb. Flange | Cable | Ductile Iron | Ductile Iron | 14 1/8" |
| 154585 | ME980C-16-2F | 2" - 300 Lb. Flange | Cable | Ductile Iron | Ductile Iron | 11 7/8" |
| 154610 | ME980-24-4F | 4" - 300 Lb. Flange | Pneumatic | Ductile Iron | Ductile Iron | 14 1/4" |
| 154590 | ME980-24-3F | 3" - 300 Lb. Flange | Pneumatic | Ductile Iron | Ductile Iron | 14 1/8" |
| 154570 | ME980-16-2F | 2" - 300 Lb. Flange | Pneumatic | Ductile Iron | Ductile Iron | 11 7/8" |
| 154565 | ME980C-24 | 3" FNPT | Cable | Ductile Iron | Ductile Iron | 9 5/8" |
| 154540 | ME980C-16 | 2" FNPT | Cable | Ductile Iron | Cast Iron | 6 7/8" |
| 154515 | ME980C-10 | 1 1/4" FNPT | Cable | Ductile Iron | Ductile Iron | 5 3/8" |
| 154550 | ME980-24 | 3" FNPT | Pneumatic | Ductile Iron | Ductile Iron | 9 5/8" |
| 154525 | ME980-16 | 2" FNPT | Pneumatic | Ductile Iron | Cast Iron | 6 7/8" |
| 154500 | ME980-10 | 1 1/4" FNPT | Pneumatic | Ductile Iron | Ductile Iron | 5 3/8" |
| 154460 | ME980-8 | 1" FNPT | Pneumatic | ----- | ----- | 4 3/4" |
| 154625 | ME980C-24-4F | 4" - 300 Lb. Flange | Cable | Ductile Iron | Ductile Iron | 14 1/4" |
